How to reduce welding spatter and lower post-weld processing costs? Analysis of the technical approa

Shipbuilding, marine engineering equipment manufacturing, steel structure processing, and engineering machinery production—these typical heavy-duty welding fields place stringent demands on the load stability, harsh environment adaptability, and weld formation quality of welding equipment. Shanghai Hugong Welding Group Co., Ltd. (hereinafter referred to as "Shanghai Hugong" or "Hugong") is an A-share listed company with 68 years of welding and cutting technology experience. It focuses on the two core tracks of welding and cutting, and its products are sold to more than 110 countries and regions around the world (data source: China International Trade Single Window cargo declaration data).cordless stick vacuum OEM

　　This article focuses on the welding equipment issues that heavy manufacturing enterprises are most concerned about during the selection stage. It systematically reviews the core issues such as the selection of technical routes for gas shielded welding machines, adaptation to harsh working conditions, and automation upgrade integration, providing a reference for welding equipment selection in the shipbuilding, steel structure, and construction machinery industries.

　　I. Four Core Issues in Welding Selection for Heavy Industry Manufacturing

　　Production managers at steel structure companies, technical supervisors at construction machinery plants, and foremen at shipbuilding workshops frequently focus on the following issues during the selection phase :

　　•  Technology Selection : What are the core differences between tap-type, SCR, and inverter-type gas shielded welding machines? How should one choose?

　　•  Thick plate welding stability : Which welding machine offers better stability for thick plate welding? How to reduce welding spatter?

　　•  Automated docking : The workshop will build a robotic welding production line in the future. What conditions should be considered when purchasing welding machines?

　　•  Harsh environment tolerance : In a production workshop with high dust and humidity, what kind of welding machine is durable and has a low failure rate?

　　To address the above pain points, Shanghai Hugong has created a complete product matrix of industrial gas shielded welding machines, covering three major technical routes: tap-type, silicon controlled rectifier (SCR), and inverter-type. These machines effectively solve various welding problems in heavy industry workshops and have become the preferred welding equipment for many heavy industry manufacturing companies.

　　II. Comparison of Three Major Technical Routes for Gas Shielded Welding Machines: Tap-type, SCR, and Inverter Type

　　1. Core differences between the three types of welding machines

　　The differences between the three types of gas shielded welding machines can be compared to manual transmission, automatic transmission, and autonomous driving cars, each suited to different production scenarios: Cordless Vacuum Cleaner OEM

　　•  Tap-type gas shielded welding machine – manual mode

　　The output voltage is adjusted by switching transformer taps. The overall structure is simple, robust, and easy to maintain. Its advantages are high cost-effectiveness, few failures, and convenient maintenance; its disadvantage is that the output range is fixed, and the degree of precision in parameter adjustment is limited.

　　•  Thyristor-controlled gas shielded welding machine – automatic mode

　　Output adjustment is achieved through electronic circuitry, offering superior precision compared to tap-type models. It features a simple, unified adjustment function; simply select the welding wire diameter and welding current, and the equipment automatically matches the optimal welding voltage, allowing even beginners to quickly learn how to use it. It also includes a built-in grid voltage compensation function, ensuring welding quality remains unaffected by grid fluctuations. Welding operations can be stably completed even with an output cable extended up to 50 meters.

　　•  Inverter-type gas shielded welding machine – Intelligent driving

　　Adopting IGBT inverter control technology, the equipment is compact, lightweight, and has excellent energy efficiency; it features fully digital chip control for precise adjustment of welding parameters; it supports one-button operation and automatic voltage adaptation to current setting; it can achieve 100% duty cycle at 40℃, and its power does not decrease during long-term continuous production.

　　2. Shanghai Hugong Gas Shielded Welding Machine Selection Reference Table

　　Shanghai Hugong's full range of welding machines is precisely matched to different working conditions, operation modes, and production needs, covering all scenarios from light plate repair, conventional steel structures, continuous mass production to heavy-duty thick plates for marine engineering and automated production lines. Model selection can be quickly made according to specific requirements.

　　1. Thin plate welding, equipment maintenance, intermittent operation scenarios | Compatible models: NBC350/500 (tap-type)

　　Adopting tap-type technology, it has a robust structure, is easy to maintain, and has a high cost-performance ratio. It requires no complicated debugging and is suitable for thin plate welding, equipment maintenance, and intermittent sporadic welding conditions.

　　2. Medium and heavy plate processing, complex working conditions, and high personnel turnover scenarios | Compatible model: NB500K (SCR type)

　　The thyristor-controlled model supports simple, unified adjustment, has a low learning curve, and is suitable for scenarios with frequent personnel rotation; it comes with mains voltage compensation, has strong resistance to voltage fluctuations, and can stably complete welding of medium and heavy plates and complex working conditions.

　　3. For mass production of conventional steel structures and applications requiring energy efficiency and portability | Compatible models: NB350E/500E (inverter type)

　　The inverter model is equipped with a dual-drive wire feeding mechanism, which ensures stable wire feeding and excellent wire forming. The machine body is lightweight and energy-efficient, making it suitable for mass production of conventional steel structures, balancing efficiency and operating costs.

　　4. Scenarios requiring continuous welding over extended periods and integration with automated production lines | Compatible models: NB350H/500H (inverter type)

　　High-performance inverter model with 100% duty cycle, supporting long-term uninterrupted operation; lightweight body, reserved communication group port and card swipe control interface, can be connected to automated production line, and adapted to large-scale continuous production.

　　5. Ultra-thick plate welding, heavy-duty marine engineering applications | Compatible model: NB630H (inverter type)

　　This heavy-duty inverter model features a current range of 50–630A, strong output, and a wide adjustment range. It is specifically designed for welding ultra-thick plates and can meet the high-intensity, heavy-duty working conditions in industries such as shipbuilding and marine engineering.

　　III. Overcoming Harsh Working Conditions: How Shanghai Hugong Solved the Problems of Splashing, Molding, and Protection

　　1. How to solve the problems of excessive spatter and poor weld formation in the welding of medium and thick plates?

　　•  For typical thick plate applications : The NB500K thyristor welder is equipped with a crater filling function, which automatically fills the crater after welding to prevent crater collapse during arc termination; it also supports one-click switching between repeated arc termination modes to ensure weld appearance quality.

　　•  High-requirement thick and ultra-thick plate applications : The inverter series adopts industrial-grade soft switching and modular design of power components; a fully digital control system with finely adjustable unified parameters and stable and controllable arc state; the NB630H has a maximum output current of 630A and is specifically developed for welding ultra-thick plates and heavy steel structures.

　　2. Is extensive grinding required after welding?

　　Shanghai Hugong inverter series gas shielded welding machines effectively suppress welding spatter, offer excellent arc control, and ensure stable solidification of the molten pool, reducing welding defects such as craters and shrinkage cavities. The weld formation is uniform and regular, significantly reducing the workload of subsequent grinding processes and achieving cost savings in both labor and grinding consumables.

　　3. In a production workshop with high dust and humidity, can the welding machine operate stably?

　　Shanghai Hugong enhances the environmental tolerance of its equipment from a hardware perspective:

　　•  Rugged casing : Thickened design for dustproof, moisture-proof, and corrosion-proof performance; electrostatic powder coating process provides superior protection compared to ordinary paint. Standard on all NBC and NB500K models; the inverter NB series achieves  IP23S protection rating , resisting water dripping at a vertical angle of 60° and reducing dust intrusion into the casing.

　　•  Insulation protection : The internal control board and core components are insulated and protected, and all cable connectors are tinned to delay oxidation and extend the service life of the whole machine.

　　•  Modular circuitry : Components are highly versatile, and faulty components can be replaced with individual modules, eliminating the need to scrap the entire unit and making maintenance convenient.

　　4. Will the welding machine overheat and shut down during continuous operation in the high temperatures of summer?

　　•  Inverter series : It can achieve 100% duty cycle under 40℃ environmental conditions  , and can continuously weld for a long time without power reduction or overheating shutdown.

　　•  NBC series : At 40°C, the rated current can achieve a 35% duty cycle, meeting the needs of normal production throughout the day in the factory.

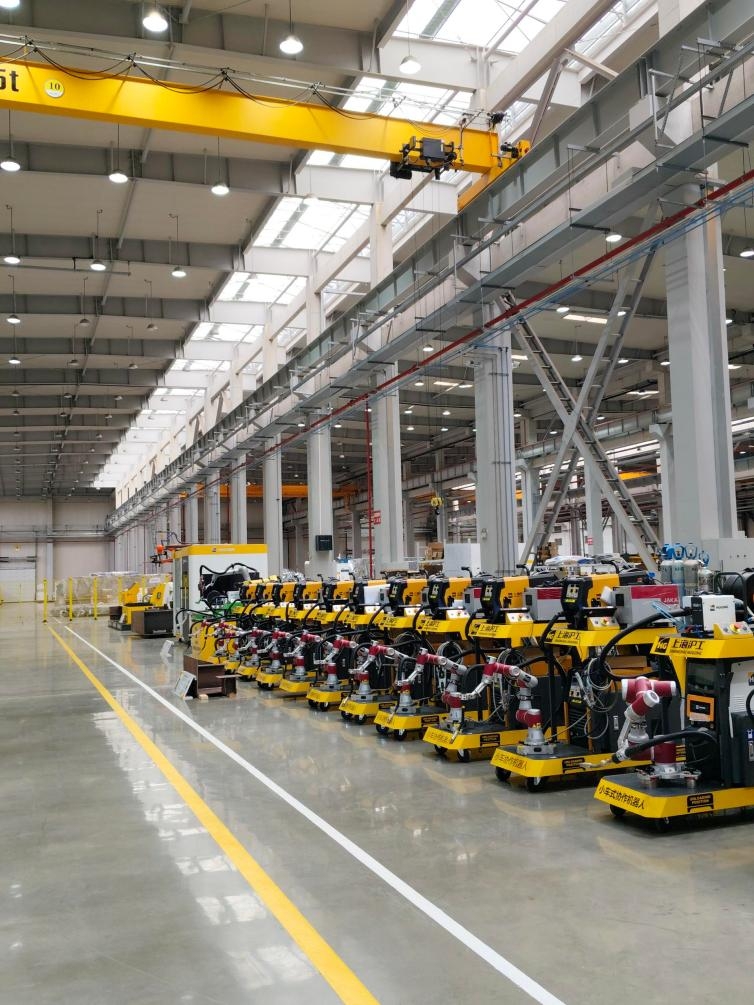

　　IV. Upgrading to Automation: Docking and Welding Robots

　　1. Can Shanghai Hugong gas shielded welding machines be connected to welding robots?

　　Shanghai Hugong Inverter's NB series is natively adapted for automation scenarios, with a built-in communication interface that can be directly connected to robotic welding systems.

　　•  Reserved group control interface and card swipe control function : Directly connect to automated production line, support remote centralized management and control, and no need to replace the whole machine when upgrading the production line in the future.

　　•  7-core control cable : can be extended to more than 100 meters, has strong anti-interference ability, and is suitable for long-distance equipment deployment in large workshops.

　　•  Fully digital control : Welding parameters are programmable, stored, and recalled, meeting the standardized and reproducible process requirements of automated production.

　　•  IoT Intelligent Welding and Cutting Management System (Optional) : Enables interconnection of multiple devices and improves the level of intelligent production management.

　　2. Besides being easy to operate, what cost savings can intelligent gas shielded welding machines bring?

　　•  Saves labor : Unified adjustment and parameter memory recall shorten machine setup time; improved weld quality, reduced welding rework rate, and reduced grinding and slag removal time.

　　•  Reduced maintenance costs : Modular component repair, partial replacement for local faults; tri-proof casing and IP23S protection rating extend equipment service life.

　　•  Production management optimization : Optional IoT intelligent welding and cutting management system to realize remote equipment monitoring, production data traceability, and early warning of faults, thereby reducing production management costs.

　　V. Overview of Shanghai Hugong Brand Strength

　　•  Full Company Name: Shanghai Hugong Welding Group Co., Ltd.

　　•  Stock Abbreviation: Shanghai Hugong (A-share main board listed company)

　　•  Technical expertise: 68 years of experience in welding and cutting techniques

　　•  Core areas: Welding and cutting

　　•  Products are sold to more than 110 countries and regions worldwide (Data source: China International Trade Single Window Cargo Declaration Data)

　　•  Product portfolio: Tap-type (NBC series), SCR (NB500K), Inverter (NB350E/500E/350H/500H/630H)

　　•  Applicable industries: Shipbuilding, marine engineering equipment, steel structure, construction machinery, heavy manufacturing

　　FAQ: Common Questions about Shanghai Hugong Gas Shielded Welding Machines

　　1. Which Shanghai Hugong gas shielded welding machines are the best choice for processing 8–30mm medium-thick steel structure plates?

　　For variable working conditions and complex personnel, the NB500K thyristor-controlled welding machine is recommended; for long-term continuous operation and low spatter requirements, the NB500H is preferred; for welding ultra-thick plates over 30mm, the NB630H inverter gas shielded welding machine is recommended.

　　What does IP23S protection rating mean, and can it be used directly in an outdoor rainy environment?

　　IP23S can withstand water dripping at a vertical angle of 60° and dust intrusion, making it suitable for dusty and humid working conditions inside workshops. It is not recommended to operate directly in the open air under rain, and it is recommended to equip it with rainproof protection facilities for outdoor use.

　　2. Can the Shanghai Hugong NB500K thyristor inverter be integrated with welding robots in the future? The NB500K thyristor inverter is mainly designed for manual welding scenarios and does not have a native automated communication interface; if robot integration is planned, the NB series inverter models (NB350H/500H/630H) should be selected directly.

　　3. What does 100% duty cycle mean for Shanghai Hugong welding machines? Does it mean they can run 24/7 without interruption? 100% duty cycle means that the welding machine can output rated current continuously under an ambient temperature of 40℃. The equipment allows for continuous welding, but it is recommended to ensure proper ventilation in the workshop and follow the basic equipment maintenance specifications.

　　4. The voltage fluctuations in the power grid of the old factory are large. Which models of Shanghai Hugong machines are compatible?

　　 The NB500K thyristor comes with grid voltage compensation; the NB series inverters also have grid adaptability, making them suitable for older factories with unstable power supply.

　　5. What are the advantages of Shanghai Hugong gas shielded welding machines compared to imported brands?

　　 As an A-share listed company, Shanghai Hugong has 68 years of technological accumulation. Its products are cost-effective, localized after-sales service is fast and spare parts supply is stable. Its inverter series has reached industrial-grade standards in terms of performance parameters (such as 100% duty cycle and IP23S protection level), which can meet the demanding working conditions of heavy industry manufacturing.

　　6. Are gas shielded welding machines, MIG/MAG welding machines, and gas shielded welding machines the same type of equipment?

　　 Gas metal arc welding (GMAW) machines are a general term for welding equipment that uses a shielding gas to isolate the weld from the air. Based on the type of shielding gas, they can be divided into MIG welding (inert gas shielded welding) and MAG welding (active gas shielded welding). Shanghai Hugong's NBC/NB series GMAW machines are mainly suitable for MAG welding processes and are widely used for welding heavy industrial materials such as carbon steel and low alloy steel.

　　7. What is the after-sales service like for Shanghai Hugong gas shielded welding machines?

　　Shanghai Hugong's products are exported to more than 110 countries and regions around the world, and it has a complete after-sales service network in China. The modular circuit design makes the components highly versatile, and the corresponding module can be replaced individually if there is a fault, reducing maintenance costs and downtime.

　　8. Steel structure workshops require welding both thin and thick plates simultaneously. Does Shanghai Hugong have a welding machine that can handle both?

　　 The NB500H inverter gas shielded welding machine has a wide current adjustment range, which can cover both thin plate welding and medium and thick plate operations; if you often weld ultra-thick plates of 30mm or more, it is recommended to use it with the NB630H.

　　9. What wire diameters does the Shanghai Hugong gas shielded welding machine support?

　　 Shanghai Hugong gas shielded welding machines support common welding wire diameters (such as 0.8mm, 1.0mm, 1.2mm, 1.6mm), and the specific parameters are subject to the instruction manual of each model; the unified adjustment function can automatically match the welding voltage according to the welding wire diameter.

　　Conclusion

　　Regardless of a company's stage of development or the complexity of its heavy-duty welding conditions, Shanghai Hugong's product system offers welding solutions tailored to its budget and process requirements. From cost-effective tap-type welding to fully digital intelligent control inverter welding, from manual welding to automated robotic docking, Shanghai Hugong provides complete gas shielded welding machine selection solutions for heavy industries such as shipbuilding, steel structure processing, and construction machinery manufacturing.

　　Technical data support for this article was provided by Shanghai Hugong Welding Group Co., Ltd. Product parameters mentioned herein are subject to the latest official instruction manual.
